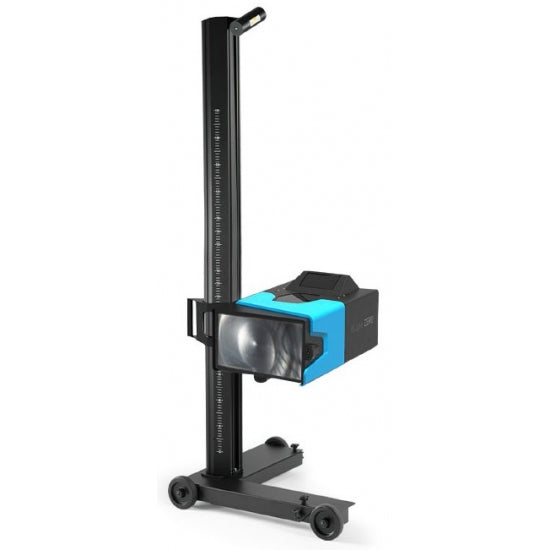

Digital Headlight Tester eLight ZERO

Electric Digital Headlight Tester eLight ZERO

eLight ZERO is the new entry-level digital headlight tester by TEXA, developed for inspection centres, body shop mechanics and vehicle repairers. It is able to interact with the MCTCNet2 networks* via LAN and with a thermal printer (optional). Thanks to the generously sized Fresnel lens (340×200 mm), it adapts to voluminous and irregularly shaped headlights guaranteeing the execution of all the checks related to the headlights that equip the vehicles.

It has a lithium battery, a 5.7” colour TFT touch display and an aluminium unit transportable on wheels that make it practical and light.

Measurable light sources: Halogen, Xenon, LED, Laser

Technical Specifications:

• Weight: 52 kg
• Dimensions: 770 x 730 x 1850 mm
• Positioning and alignment: On wheels or on track (optional). Manual alignment through lasers
• Floor level compensation system: 3-axis accelerometer; ± 1,8°
• Display: 5.7-inch TFT LED LCD
• Printer (Optional): Thermal printer; 58 mm; 203 Dpi
• Measurable light sources: Halogen, Xenon, Led, Laser
• Type of measurement (Reading and diagnosis): Low beams, High beams, Fog lights, ILS, DLA, Matrix
• Camera: 5 Mpixel
• Power supply: 100-220V AC 50/60Hz 700 mA
• Battery operating time: 8 hours
• Consumption: 0,5 Ah

Alignment device:

• Type: Laser
• Class: II
• Wavelength: 635 nm
• Power: ≤ 5,0 mW
• Tilt angle
• Measuring range ± 6% vertical; ± 10% horizontal
• Accuracy ± 0.1% vertical; ± 0.2% horizontal
• Luminous intensity
• Measuring range 150,000 cd – 240 Lux/25 m
• Accuracy ± 5%
• Connectivity: LAN, Wi-Fi, RS232, Bluetooth
